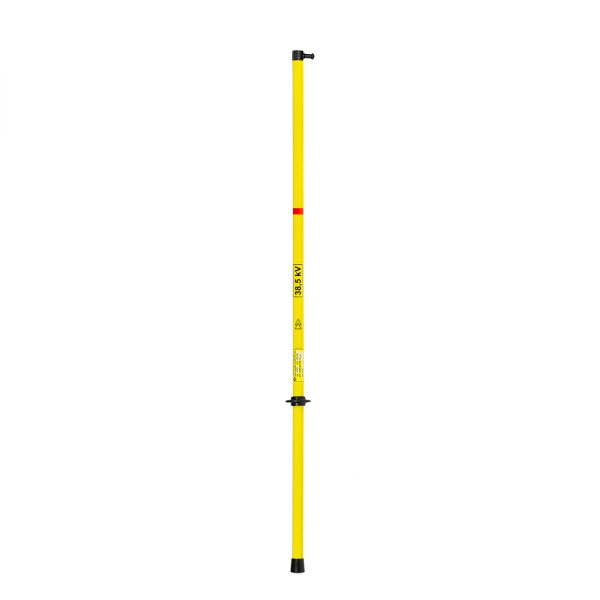

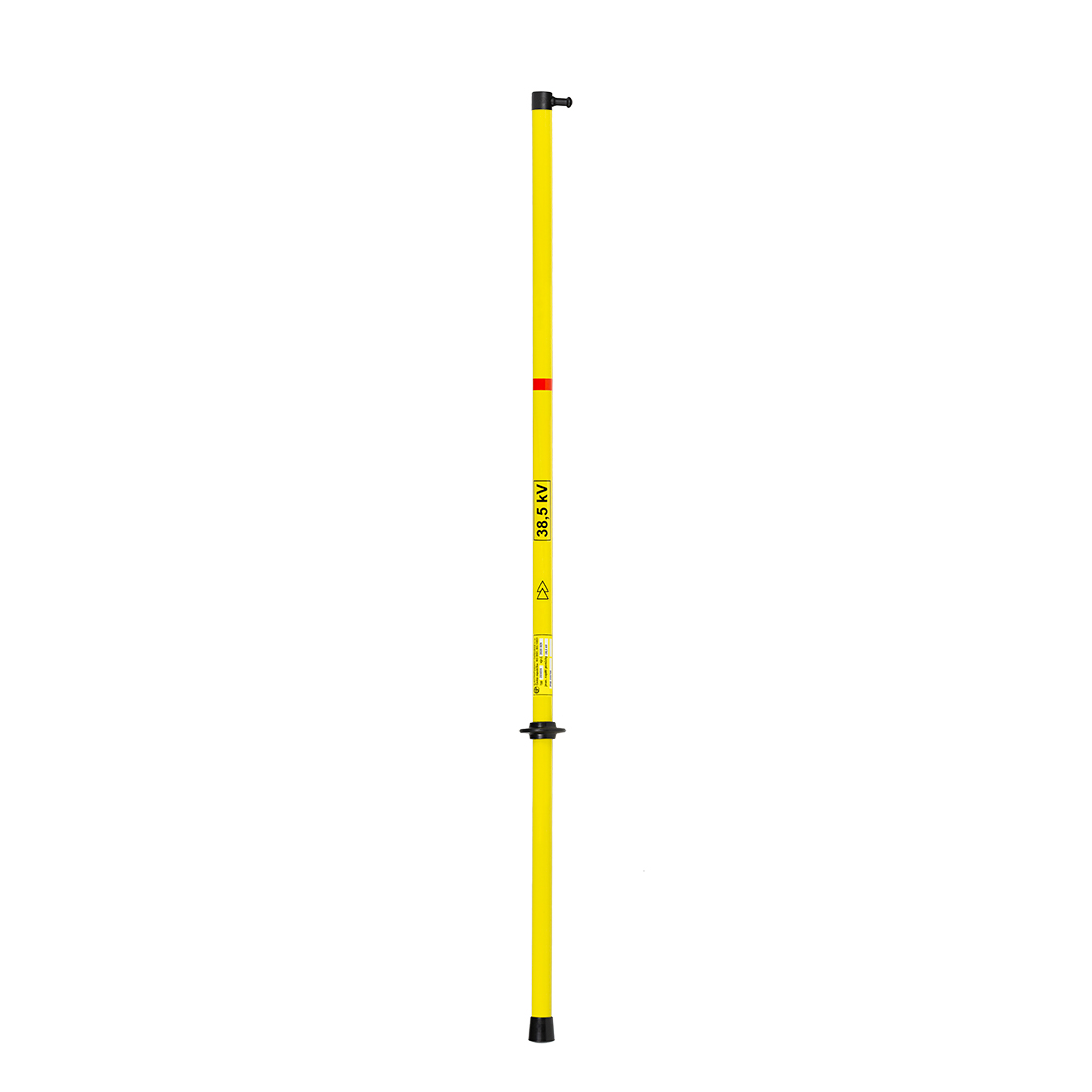

The switching stick is used in electrical stations to control disconnectors, connectors and earthing switches under voltage up to 38,5 kV.
The switching stick of the product is made of a layered colored composite material with excellent electrical insulating parameters, meeting the material requirements for outdoor devices according to PNE 359700. The material shows high mechanical resistance and stability. The stick is made in yellow. The head is made of mechanically high-strength electrical insulating material.
The stick is intended for use in indoor areas with a normal and cold environment (according to ČSN 330300) or in a dry outdoor environment, under conditions corresponding to a normal environment. This means that the device must not be used in rain, fog or snow.
Option:
total length L = 1040 mm total length L = 1540 mm total length L = 2040 mm total length L = 4000 mm
